Masini de taiat

Masini automate de taiere la cald

 TBC 50H - Hot straight cutting/ Taiere dreapta la cald

 TBC 50H

Knife/Cutit: Hot/ Fierbinte
Available/Disponibilitate: Ribbon tapes, small webbing, zippers, Velcro / Panglica, chinga subtire, fermoar, scai
Maximum width cutting (Lãtime maxima de taiere): 90mm
Cutting length (Lungimea de taiere): 15mm-300m
Speed pcs/min (Viteza pe minut): 120-140 (50mm)
Power Supply (Alimentare electrica): AC/220V-230V, 50Hz/60Hz

 TBC - 50SH - Hot straight cutting with sensor/Taiere dreapta la cald cu senzor

 TBC 50SH







Knife/Cutit: Hot
Available/Disponibilitate: Woven lables, printed lables/Etichete tesute, etichete printate
Aditional programs/ Programe suplimentare: Cutting place can be easy aimed by sensor. Mostly uses with printed and woven labels/ Locul de taiere poate fi usor de atins cu ajutorul senzorului. Cel mai mult folosit pentru etichete printate si tesute
Maximum width cutting (Latime maxima de taiere): 90mm
Cutting length (Lungimea de taiere): 15mm-300m
Speed pcs/min (Viteza pe minut): 120-140 (50mm)
Power Supply (Alimentare electrica): AC/220V-230V, 50Hz/60Hz

TBC - 50SHK3 - Hot straight cutting with sensor and stacker/Taiere dreapta la cald cu senzor si stocare

 TBC 50SHK3

Knife/Cutit: Hot/ Fierbinte
Available/Disponibilitate: Woven lables, printed lables, velcro tape/Etichete tesute, etichete printate, banda scai
Aditional programs/Programe suplimentare: Woven, printed label can be cut and stacked automaticly/Tesut, eticheta printata poate fi taiata si stocata automat
Maximum width cutting (Latime maxima de taiere): 55mm
Stacked: 50mm-145m
Speed pcs/min (Viteza pe minut): 95-115 (50mm)
Power Supply (Alimentare electrica): AC/220V-230V, 50Hz/60Hz

 Masini automate de taiere la rece

TBC - 50 - Cold straight cutting/ Taiere dreapta la rece

TBC 50

Knife/Cutit: Cold
Available/Disponibilitate:Belt loop, plastic zipper/fermoar de plastic, banda scai
Maximum width cutting (Latime maxima de taiere): 100mm
Cutting length (Lungimea de taiere): 1mm-300m
Speed pcs/min (Viteza pe minut): 120-140 (50mm)
Power Supply (Alimentare electrica): AC/220V-230V, 50Hz/60Hz

TBC - 50S - Cold straight cutting with sensor/Taiere dreapta la rece cu senzor

TBC 50S

Knife/Cutit: Cold/Rece
Available/Disponibilitate: Printed lables, printed paper lables (also the same functions like TBC-50)/ etichete printate, eticheta printata de hartie (cu aceleasi functii ca si la TBC- 50)
Aditional programs/ Programe suplimentare: Cutting place can be easy aimed by sensor. Mostly uses with printed labels/ Locul de taiere poate fi usor de atins cu ajutorul senzorului. Cel mai mult folosit pentru etichete printate
Maximum width cutting (Latime maxima de taiere): 100mm
Cutting length (Lungimea de taiere): 5mm-300m
Speed pcs/min (Viteza pe minut): 120-140 (50mm)
Power Supply (Alimentare electrica): AC/220V-230V, 50Hz/60Hz

TBC - 55SK - Cold straight cutting with sensor and stacker/Taiere dreapta la rece cu senzor si stocare

TBC 55SK

Knife/Cuţit: Cold/Rece
Available/Disponibilitate: Woven lables, printed lables, velcro tape/ etichete tesute, etichete printate, banda scai
Aditional programs/ Programe suplimentare: Woven, printed label can be cut and stacked automaticly/Tesute, etichetele printate pot fi uşor taiate si stocate
Maximum width cutting (Latime maxima de taiere): 55mm
Stacked: 30mm-150mm
Speed pcs/min (Viteza pe minut): 120-140 (50mm)
Power Supply (Alimentare electrica): AC/220V-230V, 50Hz/60Hz

 Masini automate de taiere la cald, drept si unghiular

TBC - 55HX - Hot straight and angle cutting/Taiere dreapta si unghiulara la cald

TBC 50HX

Knife/Cutit: Hot, rotating/ Fierbinte, rotativa
Available/Disponibilitate: Ribbon tape, small webbing/Panglica, chinga subtire

Aditional programs/ Programe suplimentare: Straight and angular tapes can be cut automaticly, knife rotates by motor system, cutting angle is setting by digital switching/Benzi directe si unghiulare pot fi taiate automat, cutit rotativ prin sistemul automat, unghi de taiere setat digital

Sample shapes/Forme de mostre: 55HXforme

­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­ ­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­Maximum width cutting (Latime maxima de taiere): Straight/ Direct 70mm; Obligue /Oblic 45mm
Cutting length (Lungimea de taiere): 50mm-300m
Speed pcs/min (Viteza pe minut): 60/70 (50mm)
Power Supply (Alimentare electrica): AC/220V-230V, 50Hz/60Hz

TBC - 50HX - Hot straight and angle cutting/ Taiere dreapta si unghiulara  la cald

 TBC 50HX

Knife/Cuþit: Hot, rotating/ Fierbinte, rotativ
Available/Disponibilitate: Ribbon tape, small webbing/panglică, chingă subþire
Aditional programs/ Programe suplimentare: Straight and angular tapes can be cut automaticly, knife rotates by motor system, cutting angle is setting manually. Compressed air is required/ Benzi directe şi unghiulare pot fi tăiate automat, cuţitul rotativ este setat manual
Sample shapes/Forme de mostre: 50HXforme

­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­Maximum width cutting (Lăţime maximă de tăiere): Straight 45mm; Obligue/Direct 45mm; oblic 30mm
Cutting length (Lungimea de tăiere): 40mm-300m
Speed pcs/min (Viteza pe minut): 120-140 (50mm)
Power Supply (Alimentare electrică): AC/220V-230V, 50Hz/60Hz

TBC - 55LHX - Hot straight cutting and angle with cutting time adjusting/ Taiere dreapta si unghiulara  la cald

TBC 55LHX

Knife/Cuþit: Hot, rotating/ Fierbinte, rotativ
Available/Disponibilitate: Ewebbing, P.P band, safety belt, parachute belt/ Chinga, banda PP, centura de siguranta, chinga de parasuta
Aditional programs/ Programe suplimentare: Astraight and angular tapes can be cut automaticly, knife rotates by motor system, cutting angle setting by digital switching. Cutting time is adjusting by pneumatic system from 0,3s to 3s. Compressed air is required / Benzi directe si unghiulare pot fi taiate automat, cutit rotativ prin sistemul automat, unghi de taiere setat digital. Timpul de taiere este reglat de sistemul pneumatic de la 0.3s la 3s. Este nevoie de aer comprimat.
Sample shapes/forme de mostre: 55LHXforme
Maximum width cutting (Latime maxima de taiere): Straight; Obligue/Direct 150mm; Oblic 100mm
Cutting length (Lungimea de taiere): 30mm-300m
Speed pcs/min (Viteza pe minut): 16-26 (1m)
Power Supply (Alimentare electrica): AC/220V-230V, 50Hz/60Hz

 Masini automate de taiat cu cutit lat

TBC - 50LH/AIR - Hot cutting straight with cutting time adjusting/ Taietor drept la cald cu regulator timp de taiere

TBC 50LH AIR

Knife/Cuţit: Hot/Fierbinte
Available/Disponibilitate: Webbing, P.P band, safety belt, parachute belt, heavy tapes/ Chinga, banda PP, centura de siguranta, chinga de parasuta, benzi grele
Aditional programs/ Programe suplimentare: Cutting time is adjusting by pneumatic system from 0,3s to 3s. Compressed air is required./ Timpul de taiere poate fi reglat de sistemul pneumatic de la 0.3s la 3s. Este nevoie de aer comprimat
Maximum width cutting (Latime maxima de taiere):200mm
Cutting length (Lungimea de taiere): 30mm-300m
Speed pcs/min (Viteza pe minut): 16-26(1m)
Power Supply (Alimentare electrica): AC/220V-230V, 50Hz/60Hz

TBC - 50LHA - Hot cutting straight or angle with cutting time adjusting/Taietor drept si unghiular la cald cu regulator timp de taiere

 TBC 50LHA

Knife/Cutit: Hot/Fierbinte
Available/Disponibilitate: Webbing, P.P band, safety belt, parachute belt/ Chinga, bandă PP, centura de siguranta, chinga de parasuta
Aditional programs/ Programe suplimentare: Tapes can be cut automaticly straight or angular, knife is adjusting by hand. Cutting time is adjusting by pneumatic system from 0,3s to 3s. Compressed air is required/ Benzile pot fi taiate automat direct sau unghiular, cutitul este reglat manual. Timpul de taiere poate fi reglat de sistemul pneumatic de la 0.3s la 3s. Este nevoie de aer comprimat
Sample shapes/Forme de mostre: 50LHAforme
Maximum width cutting (Latime maxima de taiere): Straight/direct 150mm
Oblique/oblic 100 ;
Cutting length (Lungimea de taiere): 30mm-300m
Speed pcs/min (Viteza pe minut): 16-26 (1m)
Power Supply (Alimentare electrica): AC/220V-230V, 50Hz/60Hz

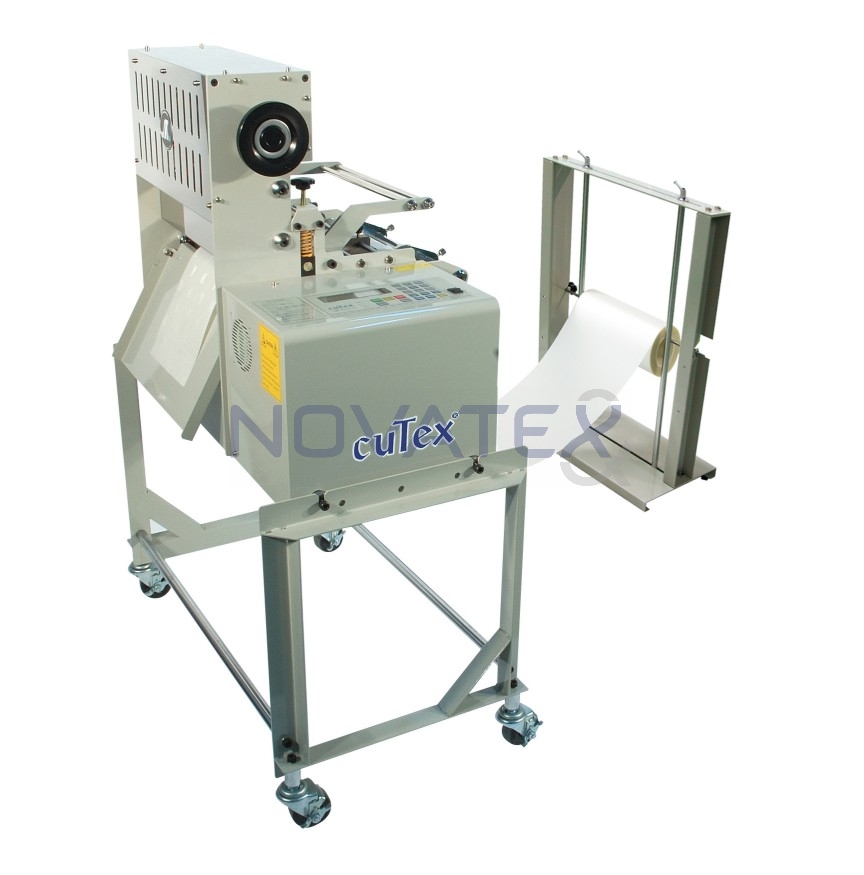

TBC - 552L(553L,554L,555L,556L,750L,850L) - Cold straight cutting, extra large/Taietor drept la rece si foarte mare

 TBC 552L

Knife/Cutit: Cold/Rece
Maximum width cutting (Latime maxima de taiere):
TBC-552L – 200mm
TBC-553L – 300mm
TBC-540L – 400mm
TBC-550L – 500mm
TBC-560L – 600mm
TBC-750L – 750mm
TBC-850L – 850mm
Cutting length (Lungimea de taiere): 5mm-300m
Speed pcs/min (Viteza pe minut): 16-26 (1m)
Power Supply (Alimentare electrica): AC/220V-230V, 50Hz/60Hz

 Masini de taiat

TBC - 53R - Large Velcro tape round cutter/ Taietor rotund de banda scai

TBC 53R

Knife/Cutit: Cold/ Rece
Available/Disponibilitate: Velcro tape/ Banda scai
Aditional programs/ Programe suplimentare: Only roundly shapes of velcro tapes can be cut, not straight cutting possible/ Doar forme rotunde de banda scai se pot taia si nu este posibila taierea directa
Different cutting shapes possible by mold knife changing/ Este posibila taierea diferitelor forme prin schimbarea cuţitului: Standard oval half circle/ Standard, oval, semicerc 53rforme
Maximum width cutting (Latime maxima de taiere):
Standard: 12,5mm-70mm
Half circle/Semicerc: 12mm-46mm
Circle/Cerc: 8mm-50,8mm
Cutting length (Lungimea de taiere): 5mm-300m
Speed pcs/min (Viteza pe minut): 60-80 (50mm)
Power Supply (Alimentare electrica): AC/220V-230V, 50Hz/60Hz

TBC - 52RT - Velcro tape round and straight cutter/ Taietor drept şi rotund scai

 TBC 52RT

Knife/Cuþit: Cold, straight or round/ Rece, direct şi rotund
Available/Disponibilitate: Velcro tape/Banda scai
Aditional programs/ Programe suplimentare: Roundly and straight shapes of velcro tapes can be cut autoamatically/ Pot fi taiate automat forme rotunde si directe de banda scai
Different cutting shapes possible by mold knife changing: Straight, standard, oval, half circle / Este posibila taierea diferitelor forme prin schimbarea cutitului: Direct, standard, oval, semicerc şi cerc 52rtforme
Maximum width cutting (Latime maxima de taiere): Straight/Direct: 90mm; Standard: 12,5mm-55mm; Oval:12mm-30mm;
Half circle/Semicerc: 12mm-30mm; Circle/Cerc: 8mm-30mm
Cutting length (Lungimea de tăiere): 5mm-300m
Speed pcs/min (Viteza pe minut): 60-80 (50mm)
Power Supply (Alimentare electrica): AC/220V-230V, 50Hz/60Hz

HFC - 310BL3 - High speed cold cutting machine/Masina de mare viteza cu taiere la rece

 HFC 310BL3

Knife/Cutit: Cold/Rece
Available/Disponibilitate: Film tapes, printed tapes/ Benzi de film, benzi printate
Aditional programs/ Programe suplimentare: High speed cold cutting using laser sensor/ Taiere la rece de mare viteza folosind un senzor -laser
Width/Latime: 300mm
Cutting length (Lungimea de tăiere): 1mm-9999,1mm
Speed pcs/min (Viteza pe minut): 250-280 (50mm)
Power Supply (Alimentare electrica): AC/220V-230V, 50Hz/60Hz

Masini de taiat automate pentru uz special

TUC - 40SK2 - Ultrasonic label cutter with sensor and stacker/Taietor ultrasonic de etichete cu senzor si ghidaj

 TUC 40SK2

Knife/Cutit: Ultrasonic, straight/Ultrasonic, direct
Available/Disponibilitate: Printed labels/ Etichete printate
Aditional programs/ Programe suplimentare: Cutting and stracking automatically, cutting by ultrasonic/Tăiere ultrasonică şi automată;
Width cutting (Lăţime de tăiere): 20mm-55mm (Optimum 25mm-45mm);
Cutting length (Lungimea de tăiere): 40mm-145mm (Optimum 50mm-110mm); Thicness of tape/Grosimea benzii: 0,1mm-0,5mm (Optim 0,12-0,35mm);
Speed pcs/min: 300 (50mm) without stacker/fără stocare;
Speed pcs/min (Viteza pe minut): 200 (50mm) with stacker/cu stocare
Power Supply (Alimentare electrica): AC/220V-230V, 50Hz/60Hz

TBF - 50SH - Hot label cutter with sensor, stacker and folder/Taietor cald de etichete cu senzor, stocare si indosariere

TBF 50SH

Knife/Cuþit: Hot, straight/ Fierbinte, direct
Available/Disponibilitate: Printed labels, woven labels/ Etichete printate, etichete þesute
Aditional programs/ Programe suplimentare: Cutting, stacking and folding can be done automatically/ Tăierea, lipirea şi plierea se pot face automat
Width cutting (Lăţime de tăiere): 70mm
Cutting length (Lungimea de tăiere): 50mm-85mm
Folding range/Gama de pliere: 20mm-135mm after fold/ după pliere
Speed pcs/min (Viteza pe minut): 90-100 (50mm)
Power Supply (Alimentare electrică): AC/220V-230V, 50Hz/60Hz

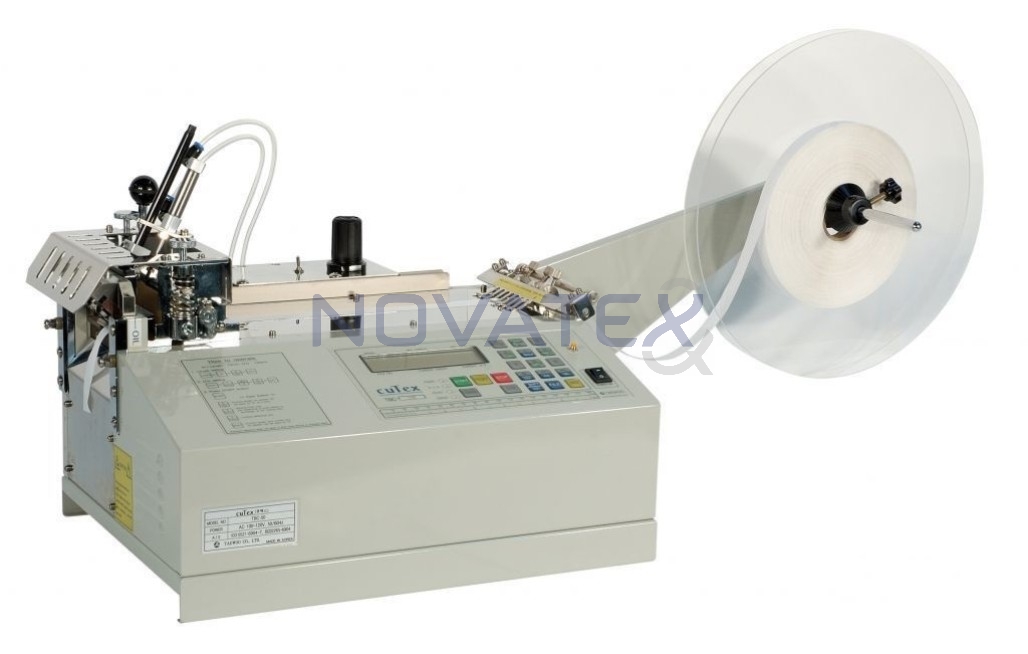

TBC - 50P- Cold knife cutter with point parking/Taietor cu cutit rece cu marcare punct

TBC 50P

Knife/Cutit: Cold, straight/ Rece, direct
Available/Disponibilitate: Elastic bands, nylon zippers, Velcro tapes, rubber tapes etc./benzi elastic, fermoare nailon, benzi scai, elastic
Aditional programs/Programe suplimentare: Automatic point marking and cutting. Pneumatic pointer. Double pointing available on request
Different markers can be use/ Marcare si taiere automata. Marcare pneumatica.La cerere marcare dublata. Se pot folosi diferite marcaje
Width cutting(Latime de taiere): 100mm
Cutting length(Lungimea de taiere): 30mm – 300m
Max. marking points on one cutting piece: up to 50
Speed pcs/min(Viteza pe minut): 90-110 (50mm)
Power Supply(Alimentare electrica): Power supply: AC/220V-230V, 50Hz/60Hz

Alimentatoare banda

TFD - 92M - Feeder for elastic bands, small stand type. Tape roll up to 2 kg/ Alimentator pentru benzi elastice. Tip mic, rolă de peste 2 kg

 TFD 92M

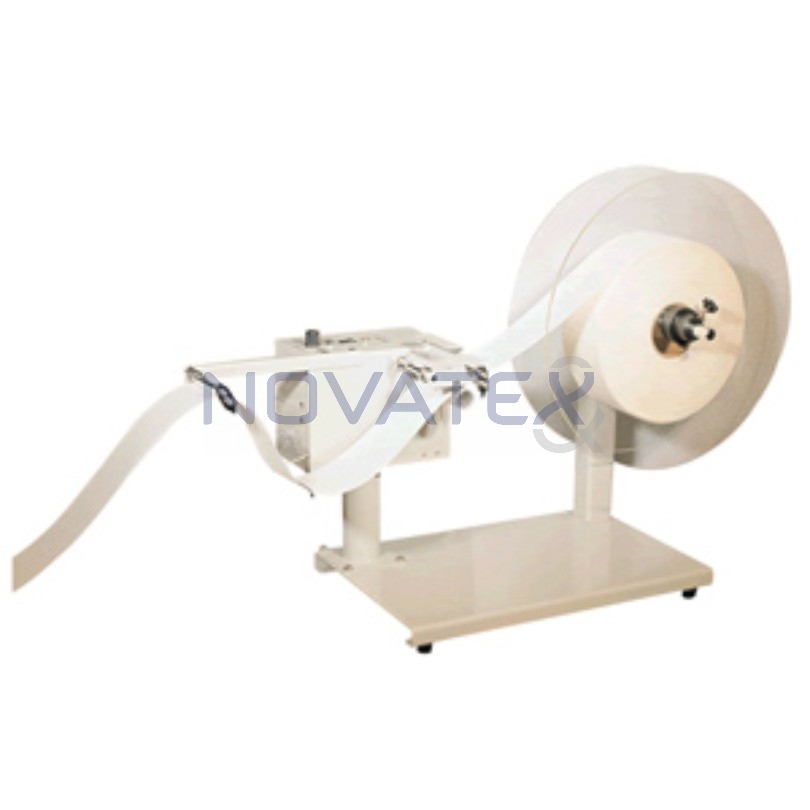

TFD - 92S - Feeder for elastic bands. Small stand type. Tape roll up to 5 kg/Alimentator pentru benzi elastic. Tip mic, rola de peste kg

TFD 92S



TFD - 92 AT - Anty twist feeder for elastic bands being feed from box or ground/Alimentator cu anti-răsucire pentru benzi elastice

TFD 92AT

TFD - 250 - feeder for heavy duty tapes. Tape roll up to 20 kg, width of roll up to 180 mm/Alimentator pentru benzi grele. Rolă de peste 20 kg, lăţimea rolei de pânã la 180 mm
TFD 250
TLC - 731  - Manual label cutter with hot nicrome wire/Maşină de tăiat etichete manuală cu fir încins din nicromTLC 731



TC - 38A - automatic cold cutting of tubular knitwear with an almighty winding roller/Maşină de tăiat la rece automată a tricotajelor circulare cu rulare de putere

 TC 38A
